The dial
|

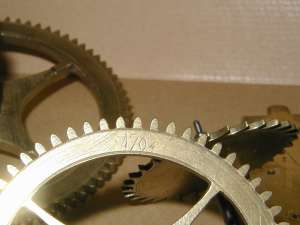

One of the wheels was engraved with 1704 on it
|
Clock wheels and pinions
|
Clock wheels and pinions
|
|
|
|
|
|
The trees or plates are straight bars in this clock as the other levers are pivoted in the frame of the clock.
|
More viewes of the trains
|
Note the lines turned on the sprocket flanges
|
Time and strike train
|
|
|
|
|
|
Back view
|
Wheel on the back of the countwheel showing the rough cast finish to the crossings
|
Side
|
The frame showing the large pivots for the strike levers
|
|
|
|
|
|
Top view of the frame
|
The iron parts note that the strike levers pass through the large pivot hole and are then held from coming out by a cross pin in the arbor.
|
More wheels
|
The finished clock
|
